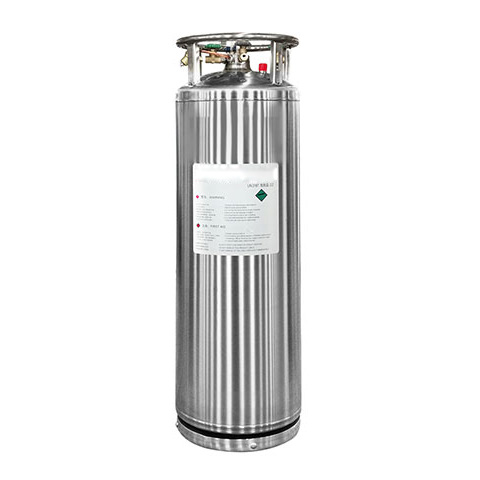

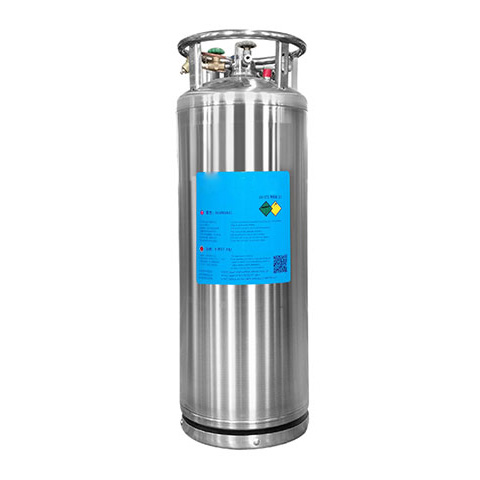

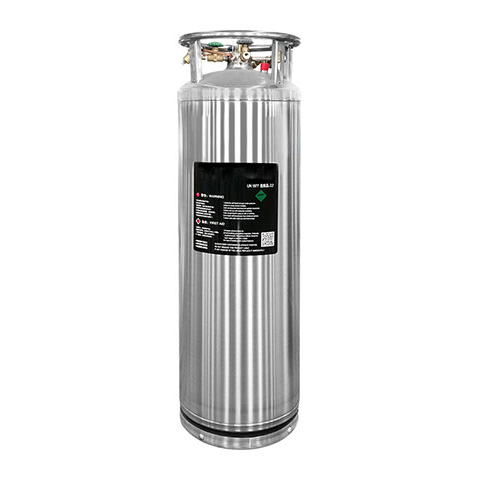

195L Dewar Flask Vertical
Main technical parameter:
Available volume: 195L
Max working pressure: 13.7bar/23bar/28.8bar/34.5bar
Design pressure: 27.4bar/46bar/57.6bar/69bar
Insulation method: Multi-layer
Main material(inner vessel/outer vessel): Stainless steel
Design temperature: -196℃
Medium: LNG(74KGS),LO2(211KGS),LN2(150KGS),LAR(259KGS)
Dimension: ~φ516*1632mm
Empty weight: ~128Kgs/143Kgs/162Kgs/185Kgs
Scope of supply:
(1)Dewar flask main body 1 set
(2)The Valves and instrument: Intake liquid valve, liquid outlet valve, pressure increasing valve, discharge valve, safety valve, liquid level meter.
