Dissolved Acetylene Plant
Applicable Industries: Manufacturing plant, energy & mining, gas factory. Acetylene is widely used in various industries for applications such as welding, cutting metals, and as a raw material for the production of chemicals like plastics, pharmaceuticals, and solvents.
Brief introduction: Acetylene plants are essential facilities for producing acetylene gas through various methods. Our acetylene plant equipped with advanced technology and safety features to ensure efficient and safe production.

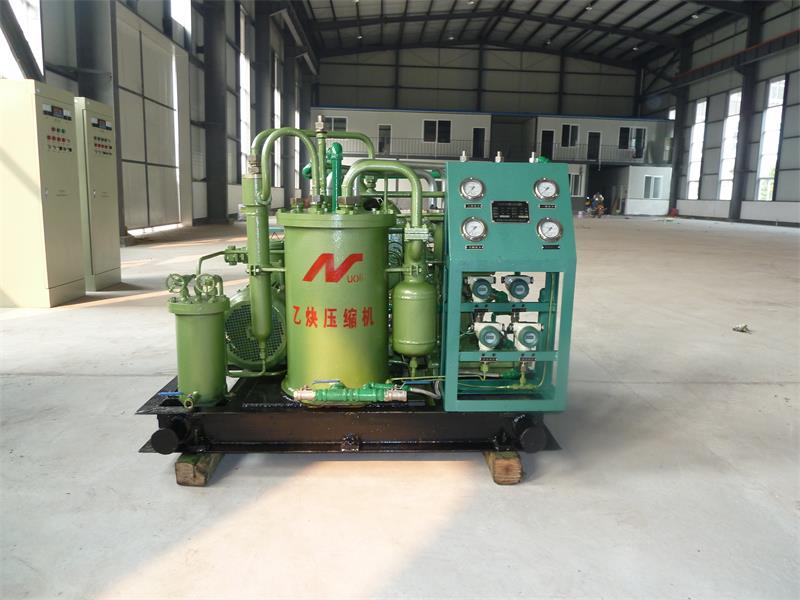

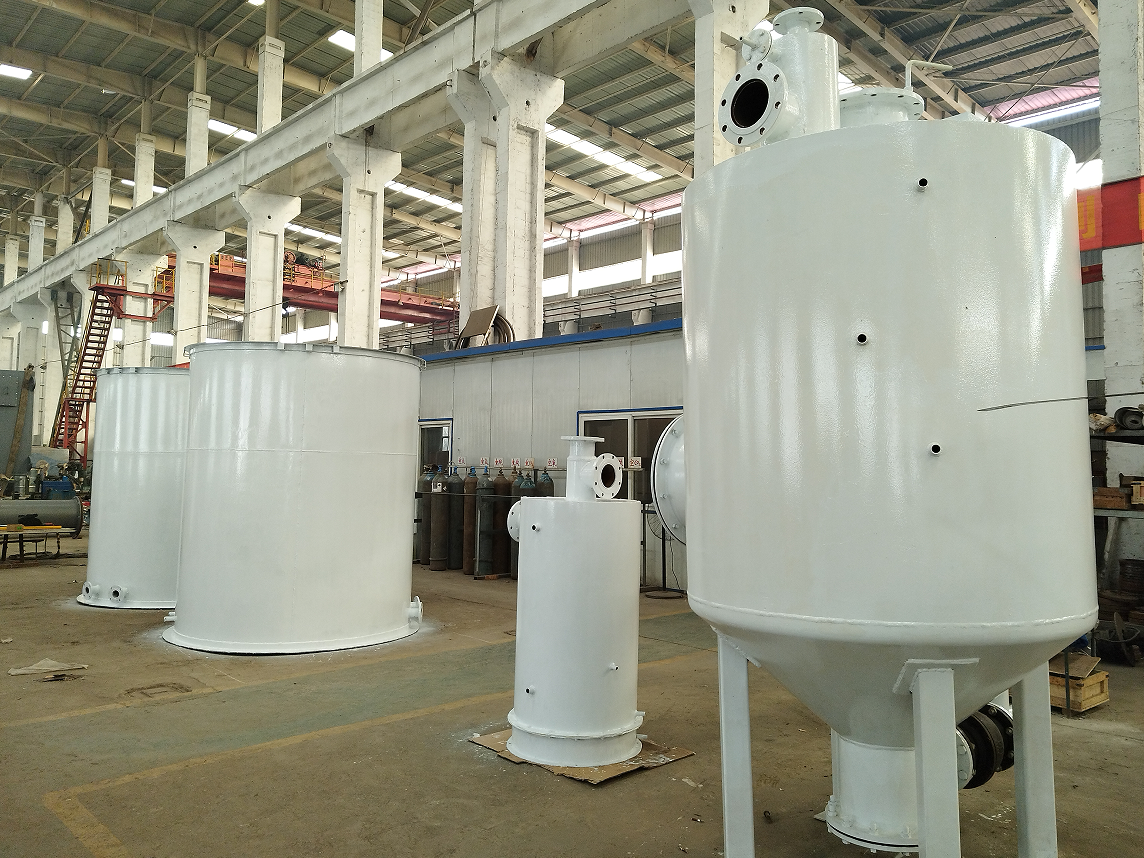

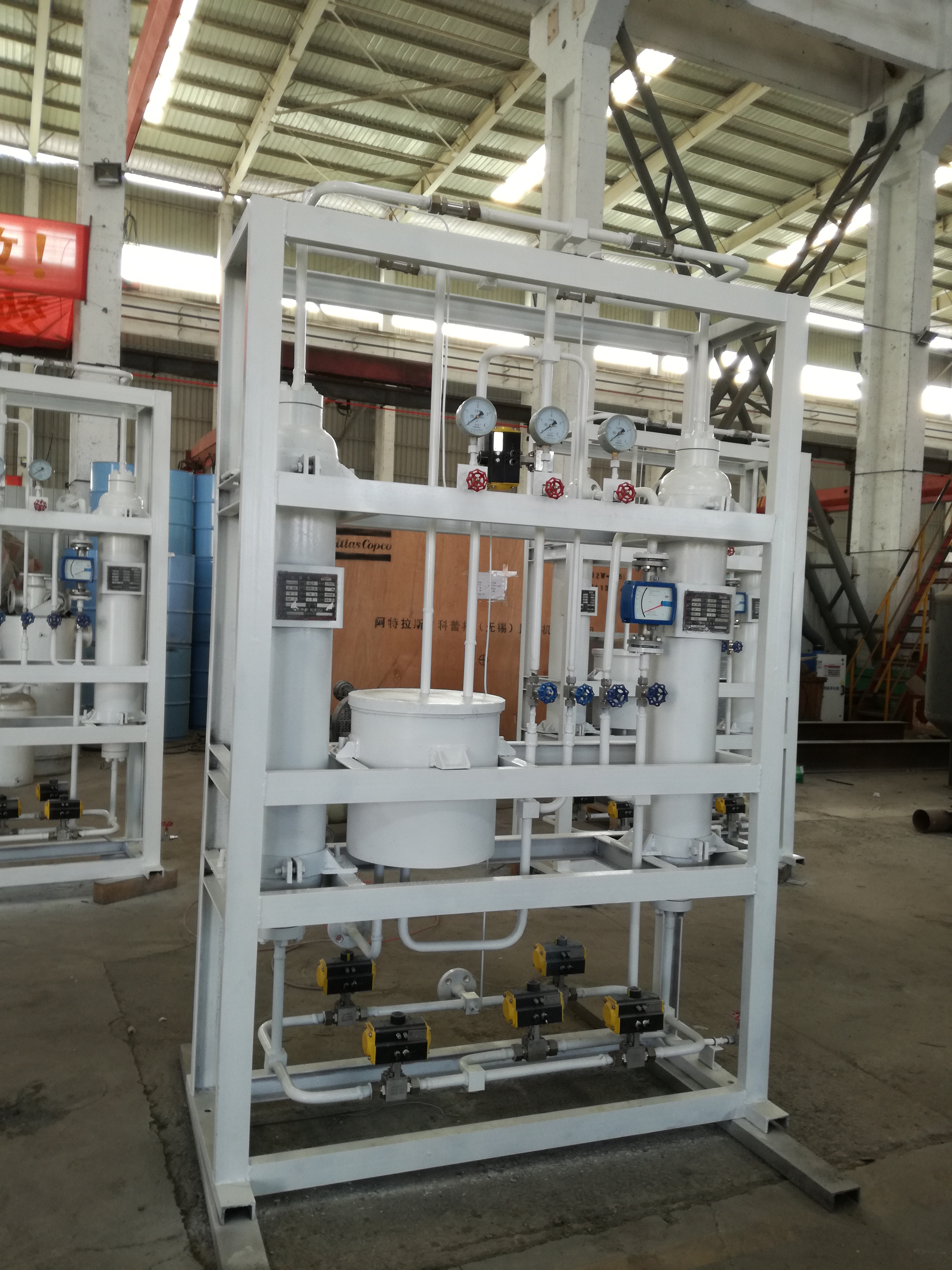

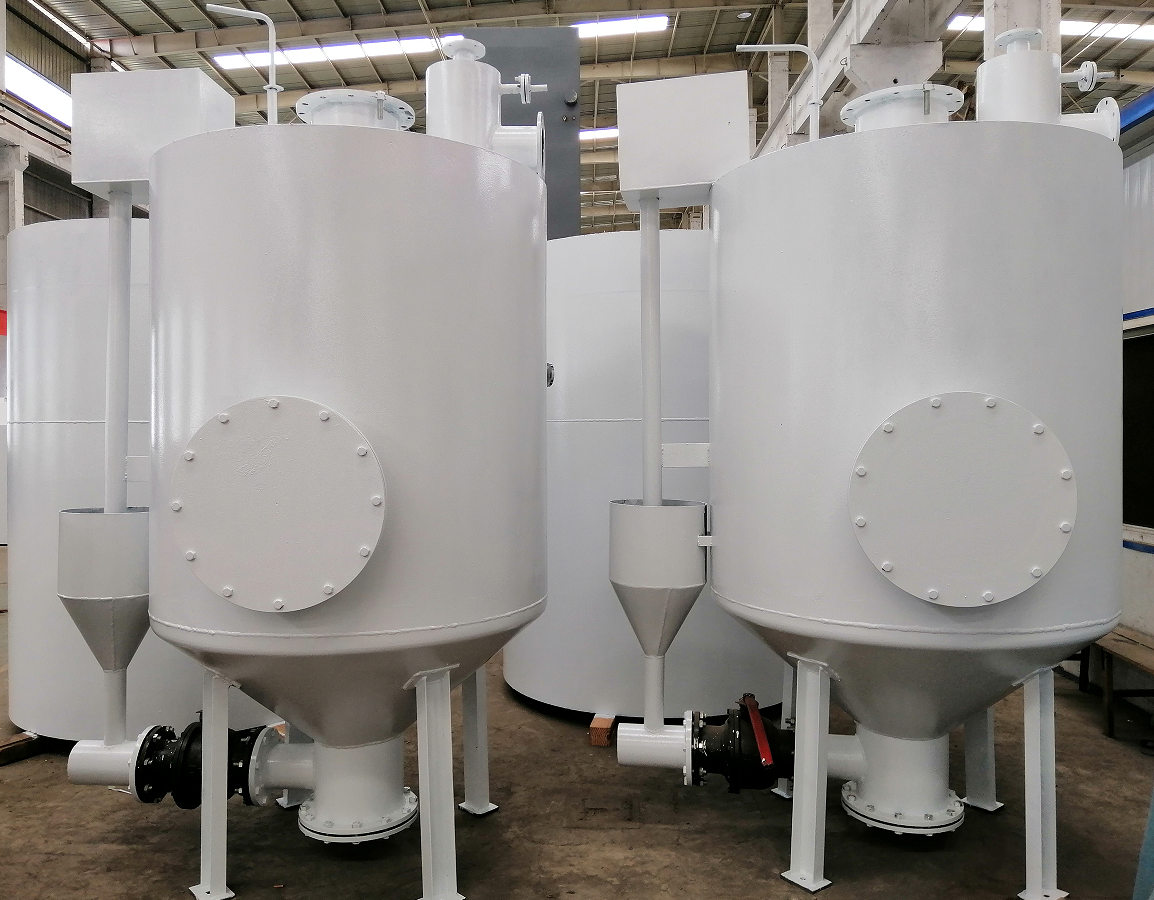

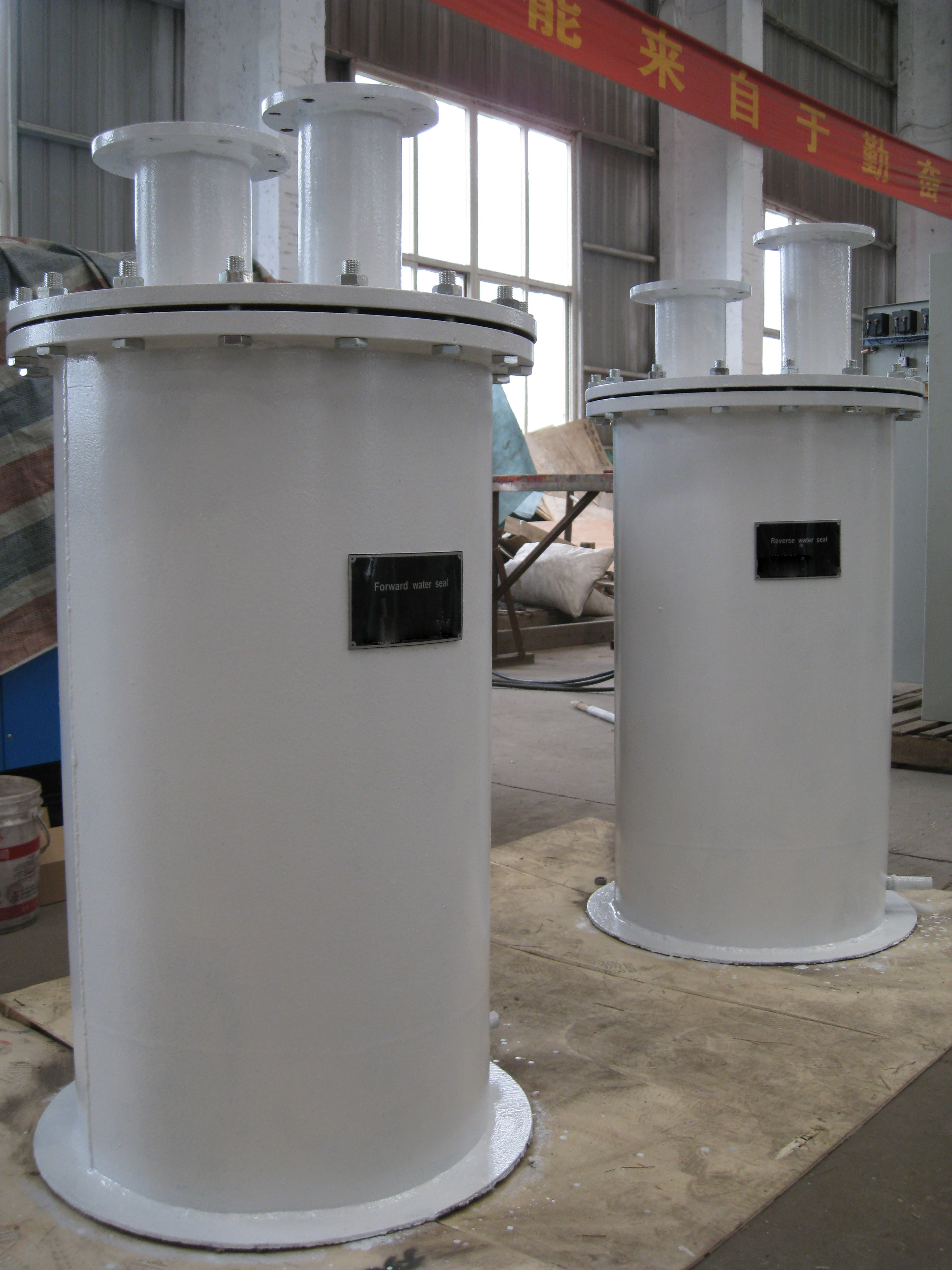

The acetylene gas plant is an integrated system that includes an acetylene generator, forward and reverse safety water seals, a gas storage tank, a central safety water seal, a water separator, a compressor, a high-pressure dryer, and a filling unit. It features an easy-to-operate design, a rational process flow, and ensures safety and reliability throughout its operation.

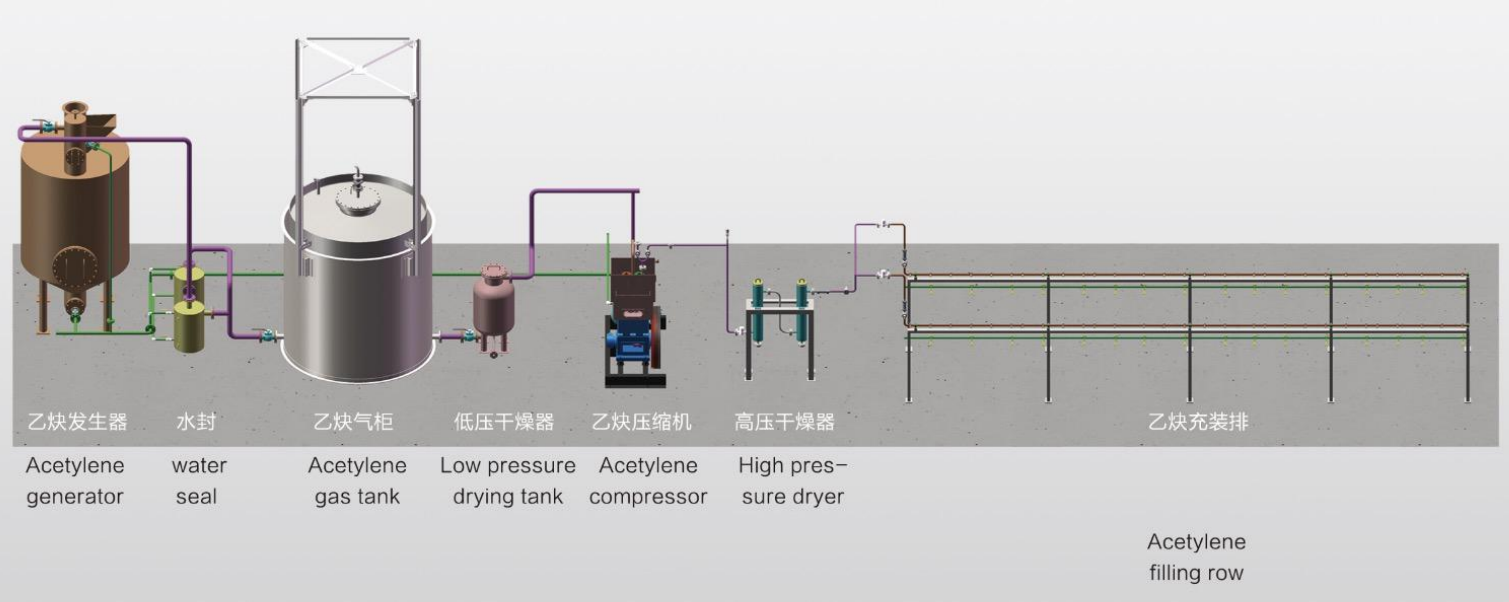

Process:
Specification:
| Specification Item | YQ-20 | YQ-40 | YQ-80 | YQ-120 | YQ-160 | YQ-240 | YQ-360 |
| Acetylene output m3/h | 20 | 40 | 80 | 120 | 160 | 240 | 360 |
| Acetylene purity % | ≥98 | ≥98 | ≥98 | ≥98 | ≥98 | ≥98 | ≥98 |
| H2S and PH3contents(10%AgNO3solution color) | Colorless | Colorless | Colorless | Colorless | Colorless | Colorless | Colorless |
| Extraction rate of acetylene% | ≥90 | ≥90 | ≥93 | ≥93 | ≥95 | ≥96 | ≥96 |
| Filling pressure Mpa | ≤2.5 | ≤2.5 | ≤2.5 | ≤2.5 | ≤2.5 | ≤2.5 | ≤2.5 |
| Water consumption(except emergency) | 3 | 4 | 6 | 7 | 8 | 10 | 13 |
| Installed capacity KW(380V,50H) | 5.5 | 11 | 22 | 33 | 44 | 66 | 90 |
