Water-bath Vaporizer


Water-bath Vaporizer

Water-bath Vaporizer


■Applicable medium: LO2, LN2, LAr, LNG, LCO2, LC2H4, LPG, LNH3, LC3H8, etc.

■Working pressure: 0.8-35.0MPa

■Single flow: 100-40000NM3/h


This series of vaporizers use steam to heat the water in the cylinder, and then heat the cryogenic liquid (LO2, LN2, LAr, LNG, LCO2, LC2H4, LPG, LNH3, LC3H8) in the compact heat exchange tube, which uses internationally advanced steam Constant temperature control system, the gasification volume is extremely stable when working, the outlet temperature is normal temperature or can be set according to user requirements, its main features are as follows:

■ Adopt high-quality low-temperature special stainless steel heat exchange tube, compact design, durable

■ Adopt British steam special control valve dual circuit design to ensure uninterrupted continuous use

■ Adopt British steam injection device, work quieter, no noise and vibration

■ Imported paint, the surface quality is more permanent

■ Adopt LG hot water special circulating pump, water temperature is balanced without stratification

■ All manufactured according to oxygen standards and food grade standards

■ Complete supporting parts, each set of vaporizer includes: body, steam control device, steam injection device, control box, liquid level gauge, thermometer, water inlet valve, drain valve, etc.




■ The barrel is available in carbon steel and stainless steel

■ High and low temperature sound and light alarm

■ Install emergency cut-off device

■ The whole equipment is skid-mounted and designed (smaller flow)

■ Can be designed and manufactured as electronic grade

■ Detachable heat exchanger core can be designed

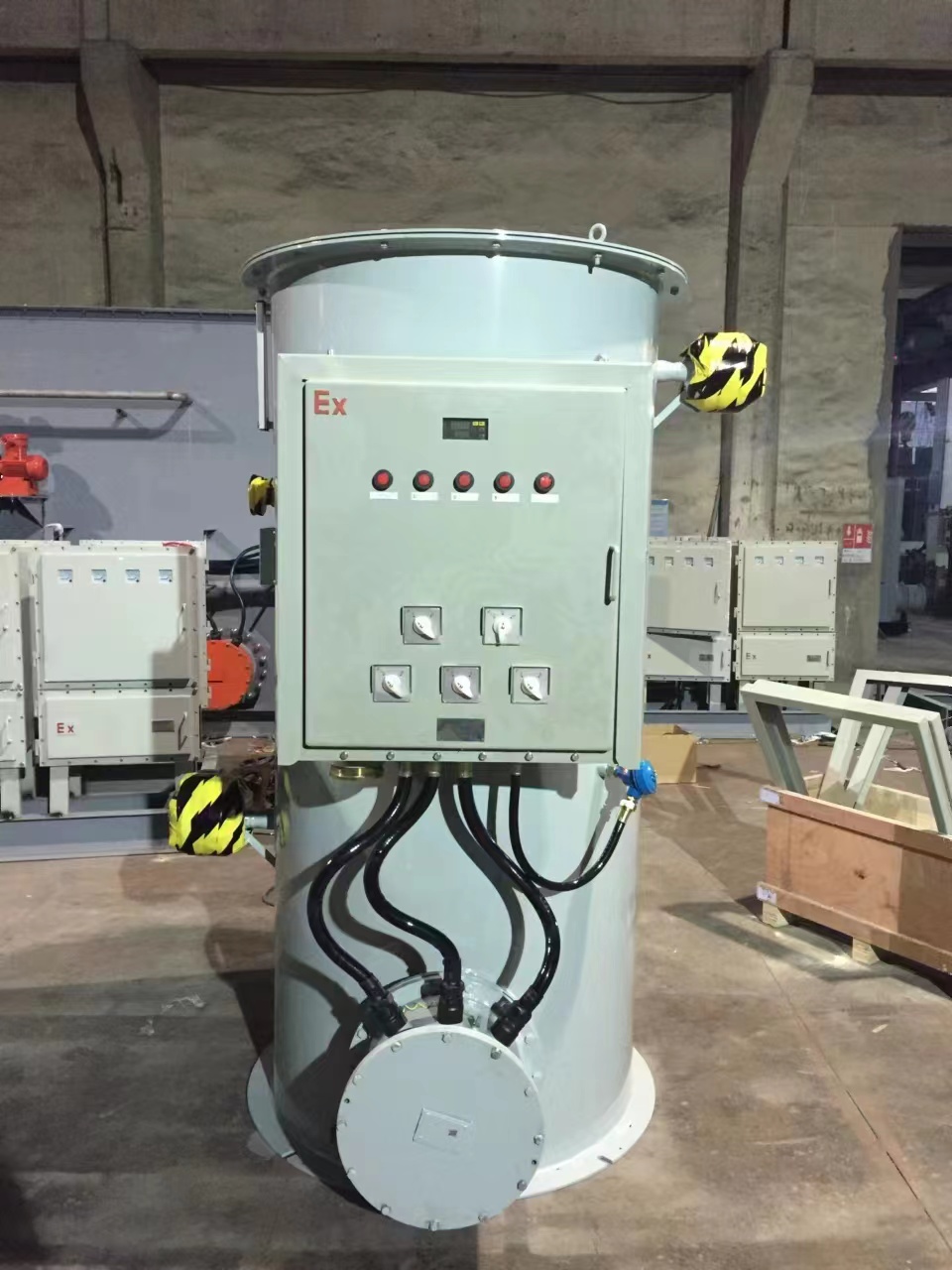

■ Explosion-proof electric control box and explosion-proof electric heater can be used


    Our expert team will support you with professional feasibility analysis and solutions. Enquire Here
